Introduction
The addition of a ZEISS SPECTRUM Coordinate Measuring Machine (CMM) strengthens our dimensional inspection process, bringing micron-level precision into how TBP Auto’s brake drums are evaluated. It also marks a step forward in how inspection is standardized across production, giving us greater control over consistency as volumes increase.

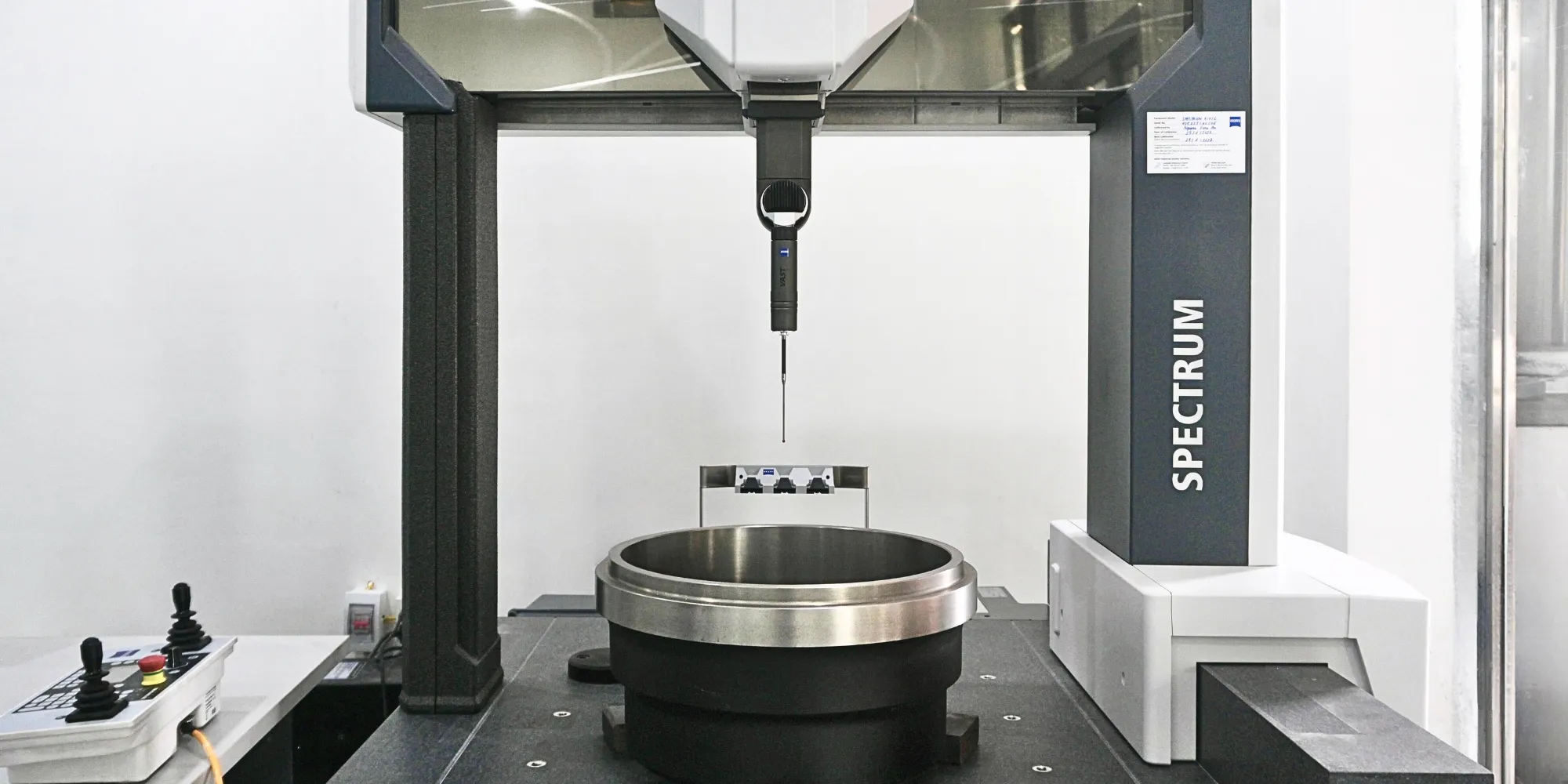

Inside the ZEISS SPECTRUM 7/7/6
While traditional gauges remain part of the inspection process, they are limited to checking individual dimensions. They do not fully capture how those dimensions interact.
A CMM addresses that gap by evaluating the part as a complete geometry, making it possible to assess how critical features relate to one another.

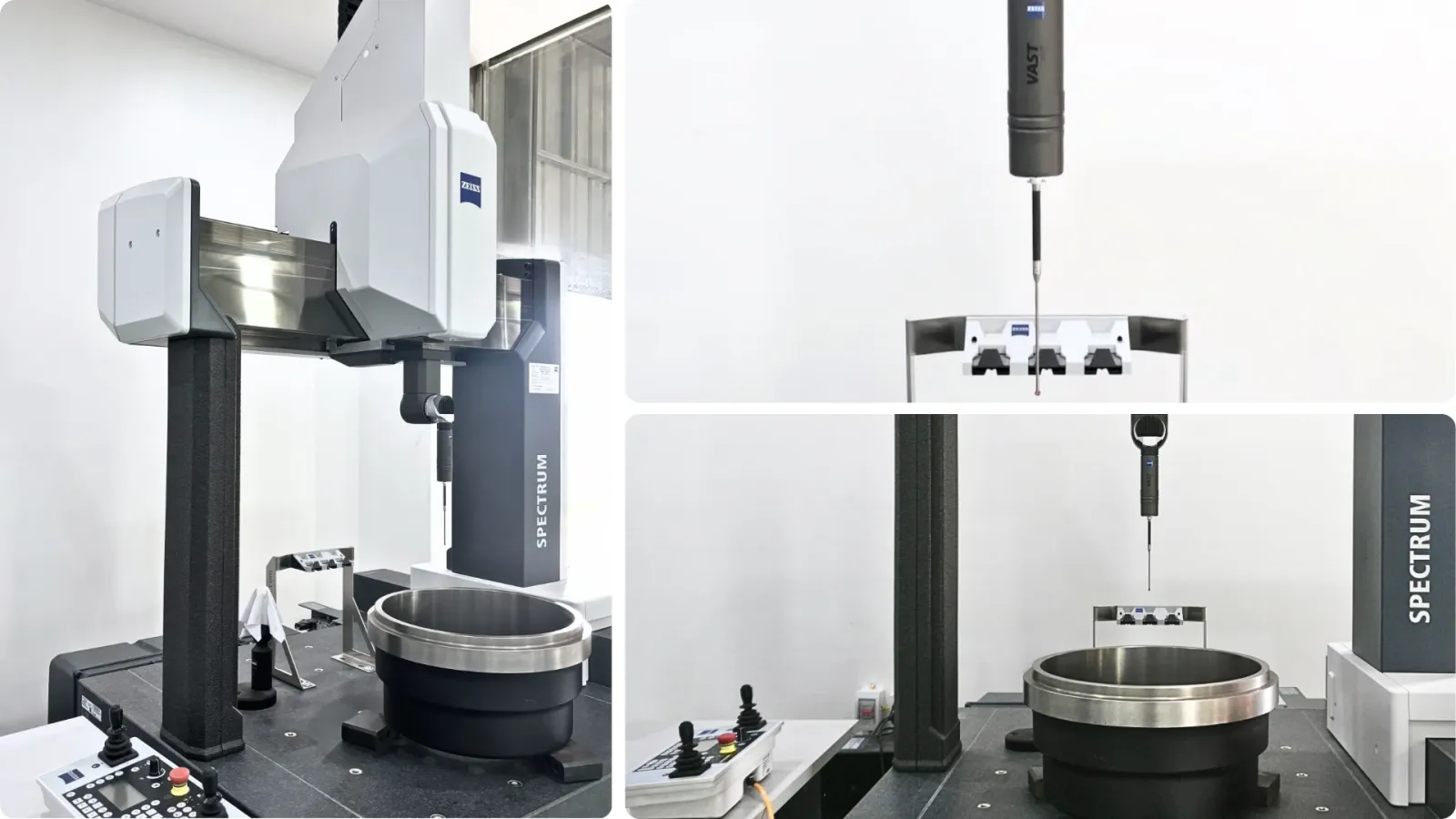

The ZEISS SPECTRUM 7/7/6 is installed in our quality lab and operates with ZEISS CALYPSO software, enabling consistent and repeatable inspection routines.
Its capabilities support the level of control required for heavy-duty components:
Together, these features allow inspections to be carried out the same way every time, with results that are directly tied to engineering specifications.
>>> Read more: Inside TBP Auto’s In-House Brake Drum Testing Lab & Process
What the CMM Measures on Every Sampled Drum
Each sampled drum is first stabilized in a controlled environment before measurement begins. From there, the CMM runs a predefined inspection program based on the part drawing.
Friction Surface
The braking surface is scanned across multiple planes to evaluate diameter, roundness, and taper. This approach provides a complete view of the surface geometry and how it will behave under braking conditions.
Mounting Flange
The flange face is measured for flatness and its alignment with the friction surface, ensuring the drum seats correctly against the hub during installation.
Wheel Pilot and Bolt Circle
Concentricity and positional accuracy are verified relative to the bore axis. These features play a key role in proper centering and stable rotation once the drum is installed.
Process and Quality Impact
The introduction of the CMM strengthens how inspection is carried out across our brake drum production.
Inspection programs are standardized and run through ZEISS CALYPSO, which means each part is measured using the same method, regardless of operator. This reduces variation in inspection results and aligns measurement practices with globally recognized equipment and standards.
At the same time, the system supports a more structured approach to quality management. Measurement data is collected consistently from sample to sample and batch to batch, making it easier to track trends, identify deviations early, and maintain control as production scales.
>>> Read more: ISO 9001:2015 Certified Brake Drum Factory in Vietnam
What This Means for Our Customers
Because brake drums operate under high load and repeated thermal cycles, even small geometric deviations can affect wear patterns, vibration, and service life. A more complete and accurate inspection process helps reduce that risk before parts reach the field.
For the OEMs, aftermarket distributors, and fleet operators who rely on our brake drums, the addition of a CMM means the parts you receive have been verified against their drawings with an accuracy most hand tools cannot match.
In practical terms:
- OEMs receive inspection data aligned with validation and qualification requirements.
- Distributors benefit from more consistent quality across production batches.
- Fleets see fewer fitment issues and more reliable performance in service.
Looking Ahead
The ZEISS CMM is part of a broader effort to strengthen process control across TBP Auto’s manufacturing operations. It works alongside material testing, chemical analysis, hardness verification, and dynamic balancing to ensure that quality is verified at multiple stages.
As production scales and requirements continue to evolve, maintaining this level of control becomes increasingly important.
