Introduction
Brake drums are a crucial component of heavy truck braking systems, playing a vital role in ensuring safe and efficient braking. Choosing a robust drum is critical, as heavy-duty trucks and trailers demand components that can withstand repeated heating and cooling cycles without warping or cracking. High-quality drums, such as the TBP 054.1640, ensure reliable stopping power, long-term durability, and compliance with safety standards, even under extreme road conditions.
Product Overview: TBP 054.1640 Brake Drum

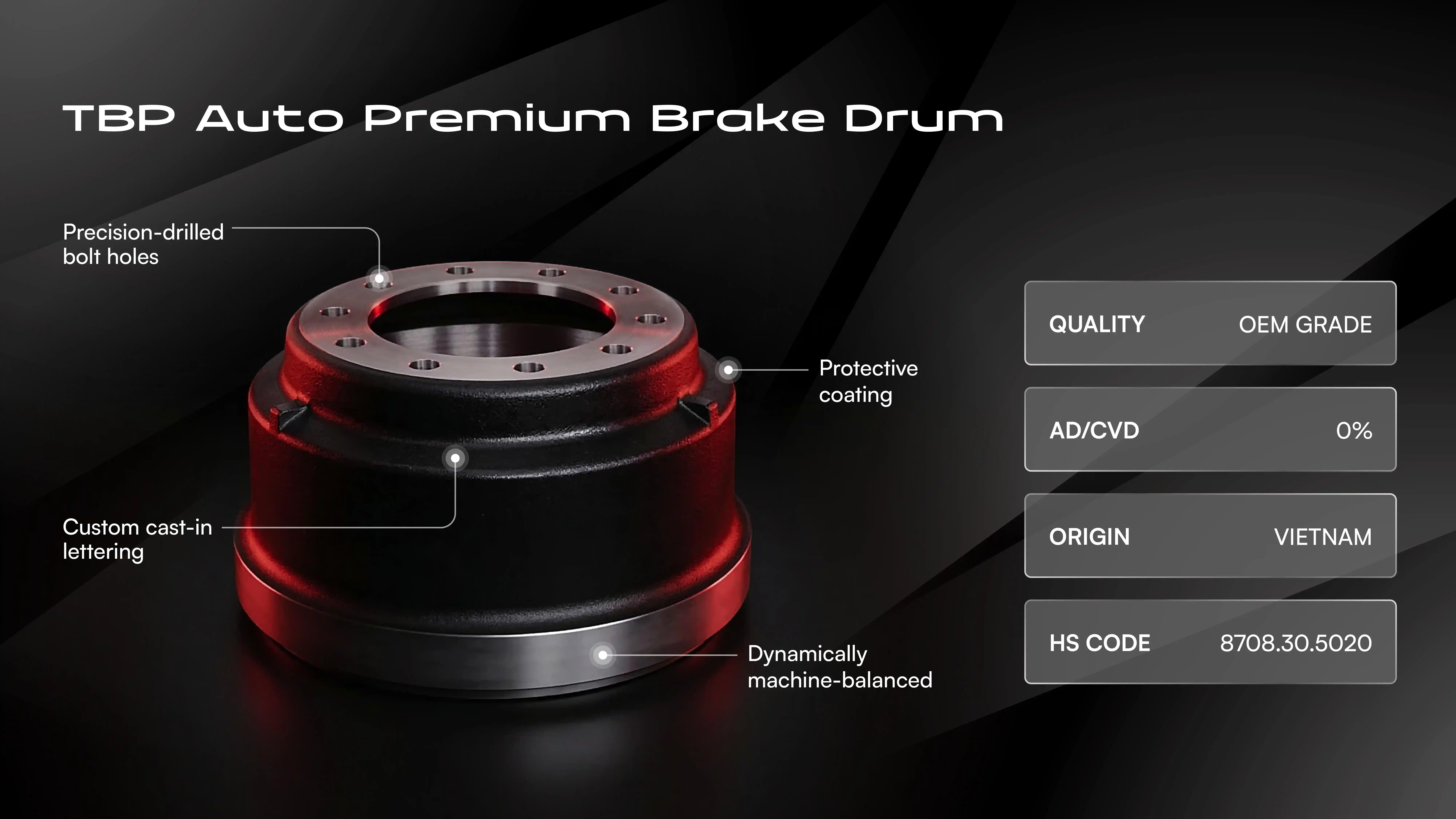

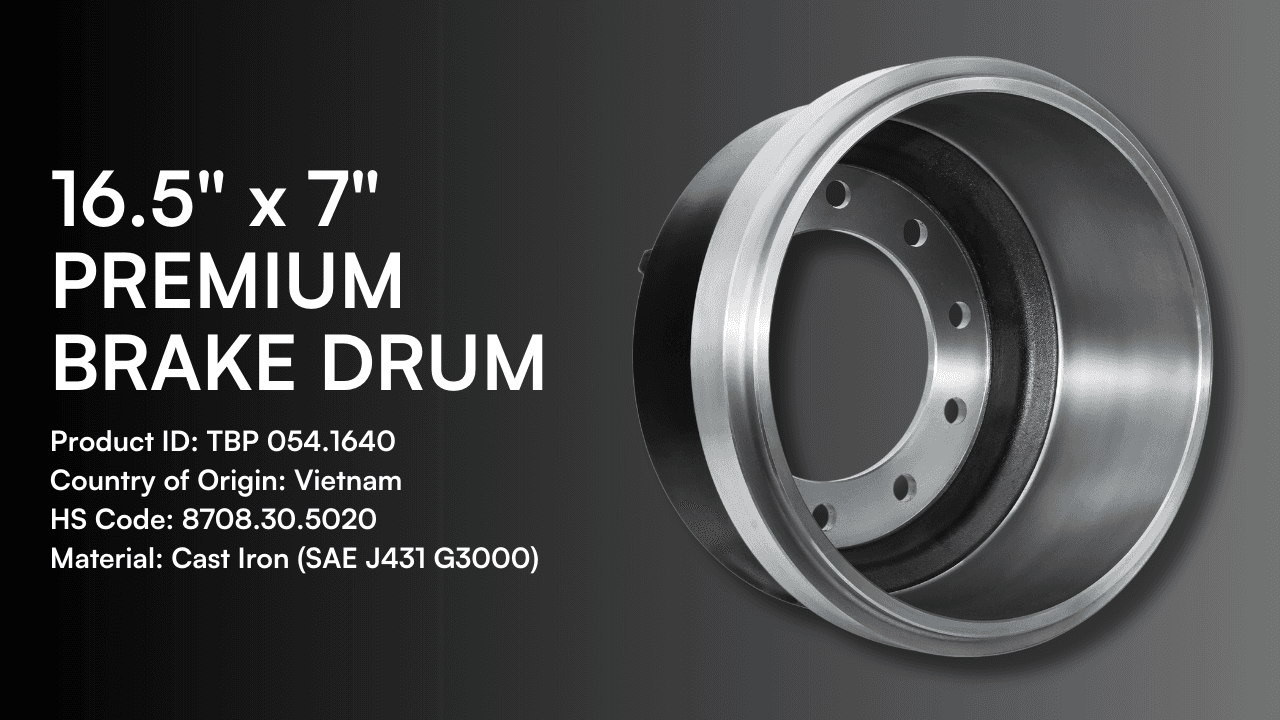

Our TBP 054.1640 brake drum is a heavy-duty drum designed for 16.5″ × 7″ brake systems on commercial trucks and trailers. In practice, this means it fits the standard 16.5-inch diameter brake assemblies with 7-inch wide shoes commonly found on Class 8 vehicles.
This drum is built from high-quality cast iron rated at SAE J431 Grade G3000, a material known for its strength and heat tolerance in brake applications.
Plus, it’s engineered as a direct replacement for many OEM drums, used on popular truck models like the Freightliner Cascadia, Volvo VNL series, Kenworth T680, and Mack Granite/Pinnacle among others. In other words, the TBP 054.1640 is fully interchangeable with its OEM counterparts, offering equivalent fit and performance.
Key Specifications:
- Size & Type: 16.5″ diameter × 7″ width, full-cast outboard-mount brake drum (standard for heavy truck rear axles and trailers).
- Bolt Pattern: 10 bolt holes on an 11.25″ circle (10×11.25″), with a central pilot bore of 8.78″. This matches the hub-piloted 10-stud wheel system used on most modern heavy trucks. Each bolt hole is 1.00 inches in diameter to accommodate standard wheel studs.
- Weight: Approximately 107 lbs (48.5 kg) per drum. This is a standard “full-weight” cast iron drum, built to handle heavy braking loads. (For comparison, an equivalent Gunite 3600A drum weighs about 112 lbs.)
- Material: Grade G3000 grey cast iron for maximum strength and heat dissipation.
- Mounting Position: Outboard (hub-piloted) mounting, typically used on drive axles and trailer axles (the drum slides over the wheel studs from the outside of the hub). This design makes service easier and is the norm for most North American heavy trucks.
- Compatibility: Interchangeable with industry-standard drums. Refer to the table below for more details.
To put our TBP brake drum in context, the table below compares its key specs to equivalent OEM drums from Gunite, Webb, Meritor, and ConMet:
The TBP 054.1640 is a full-weight, full-cast drum that matches the specs of the most common North American 16.5×7 drums. Fleet managers can mix and match it with OEM drums across axles without issue – it will line up on the hub, fit the brake shoes, and perform to OEM expectations.
Use-Case Scenarios: Long Haul, Regional, and Off-Highway
One of the strengths of the TBP 054.1640 brake drum is its versatility across different heavy-duty operating environments. This single drum model can capably serve in a variety of use cases:
- Long-Haul Trucks and Semis: Perfect for tractor-trailers that require dependable braking on highways, mountain passes, and long-distance routes. The drum’s heavy-duty build handles frequent stops with heavy cargo, giving drivers confidence in consistent braking performance.
- Construction and Vocational Trucks: Dump trucks, cement mixers, refuse haulers, and other vocational vehicles benefit from the drum’s toughness. It withstands the stress of constant stop-and-go driving with full loads and exposure to harsh jobsite conditions.
- Buses and Coaches: Large passenger buses and intercity coaches can also rely on this brake drum. They benefit from its durability, ensuring safe braking for high-capacity passenger transport.
- Trailers and Heavy Equipment: Many heavy trailers, such as lowboys or equipment haulers, that use 16.5″ × 7″ brake setups can be equipped with the TBP 054.1640. This ensures they have brake components that match the robustness of the towing unit.
In all these applications, the TBP 054.1640 brake drum provides consistent and dependable braking performance. If you manage a fleet or maintain heavy vehicles, you’ll appreciate that this drum not only meets industry safety standards but often exceeds expectations in terms of lifespan and reliability.
Built for Compliance and Durability
Engineered for both regulatory compliance and long-term performance, the TBP 054.1640 brake drum offers a combination of certified quality and rugged durability.
Key highlights include:
- Industry Standards Compliance: Built to meet or exceed key safety regulations – including U.S. FMVSS 121 brake performance standards – and cast from high-grade iron per SAE specifications. This ensures the drum aligns with OEM requirements and global heavy-duty brake standards for safe operation.
- Rigorous Quality Assurance: Every batch of drums undergoes extensive in-house testing for material integrity, hardness, balance, and dimensional accuracy. This strict quality control at the factory guarantees consistent performance and reliability before the product ever reaches your vehicle.
- Rugged Durability Benefits: Designed with a robust construction that resists wear, heat, and cracking, the 054.1640 brake drum delivers a long service life even under tough conditions. Its longevity means fewer replacements and less downtime for fleets, providing cost savings and dependable braking over the long haul.
Conclusion
In summary, the TBP 054.1640 brake drum offers a blend of technical strength and practical reliability. It provides the dimensions and performance of an OEM drum, the material quality of G3000 cast iron, and assurance that it has been engineered and tested for the most challenging scenarios. Whether on a cross-country semi-truck or a heavy-duty dump truck, this brake drum is built to deliver safe, consistent braking and to withstand the rigors of service.
